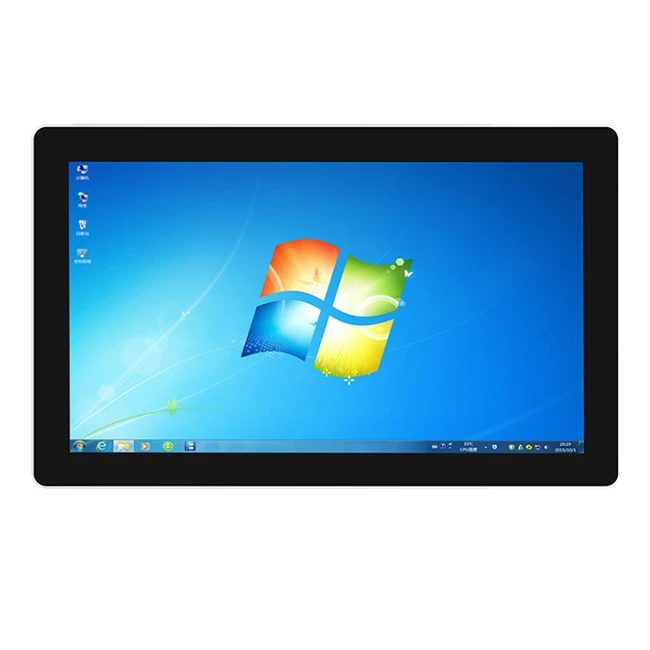

21.5 Inch TFT Capacitive Touch Screen Monitor
Overview
This family of capacitive touch monitors has a modern look with capacitive 10-finger multi-touch and each monitor comes with its own desk stand. The high resolution support (e.g. 768p, 1920×1200 pixels) of these wintouch touch devices makes them perfect for a variety of applications including POS systems, control panels in the industrial sector, kiosk systems, office/home automation and many others .
wintouch includes touchscreen drivers for popular Microsoft (CE, WinXP, Vista, Win 7, Win 8, Win 10), Mac, Android and Linux operating systems. For Win 7, Win 8 and Win 10 operating systems, no driver installation is required. Log in with the virtual keyboard and use Windows gestures right away, making it incredibly easy to start and use Windows. Embedded systems such as the Raspberry Pi are also supported.
Specification
|
LCD Monitor |
||
|
Monitor |
IP rated front panel |
IP65 |
|
Screen diagonal (Inch/cm): |
21.5/54.69 |
|
|
Display active screen size: |
47.70×26.80 |
|
|
Aspect ratio: |
16:9 |
|
|
Physical resolution: |
1920×1080 |
|
|
Maximum showable resolution (TPCs: external): |
1920×1200 |
|
|
Colours displayed: |
16.7M |
|
|
Brightness (cd/m2): |
250 |
|
|
Contrast |
1000:1 |
|
|
Typical reaction time Tr/ Tf :: |
1.5/3.5 (ms) |
|
|
Visual Angle horizontal/vertical : |
170/160(°) |
|
|
Backlight / Backlight Lifetime (hours): |
LED / 40,000 |
|
|
Video |
-1x VGA 1x DVI-D 1x HDMI |
|
|
Audio |
1x PC-Audio 1x Earphone-Out |
|
|
Touch Connector |
1x USB |
|
|
Connectors |
1x 12V DC-IN |
|
|
Working Power (V) |
12 |
|
|
Power Consumption (W) |
28 |
|
|
Touch Screen |
||
|
Touch Screen |
Touch Technology |
Projected Capacitive 10-point Multitouch |
|
Touch Connector |
USB |
|
|
Touch Panel Drivers |
Windows; Linux; Mac; Android |
|
|
Interface |
USB |
|
|
Touch Life (Contacts) |
Unlimited |
|
|
Surface Hardness |
7H |
|
Common problem
Custom design：Our company accepts customized design. We must first confirm the customized requirements with us. After confirming, we will formulate relevant customized samples. After your confirmation, we can proceed with normal production.
Payment Terms ：Regarding the payment method, our company supports T/T, Western Union,Paypal, L/C.
Shipping：Regarding the logistics method, we generally have a designated logistics provider. If you have special requirements, you can communicate with us.
Delivery time: If the product is in stock, it can be sent out on the same day; if it is mass-produced, it will take about 2-4 weeks.
Samples: Our company can provide samples, but please pay for the samples and freight.
Products Images
